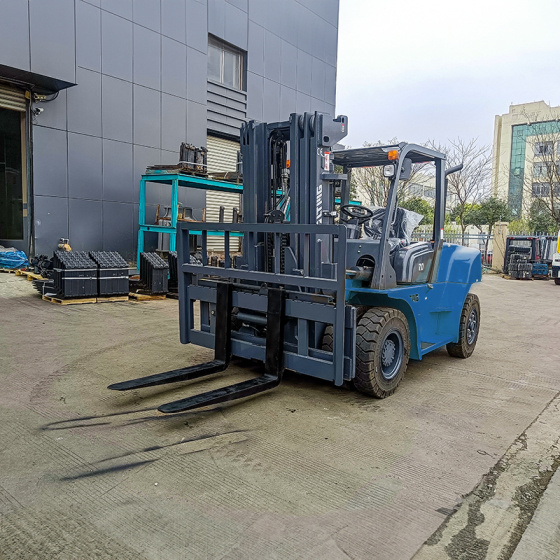

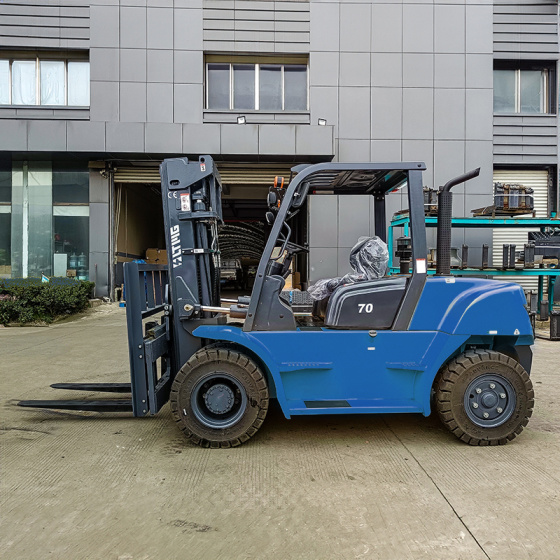

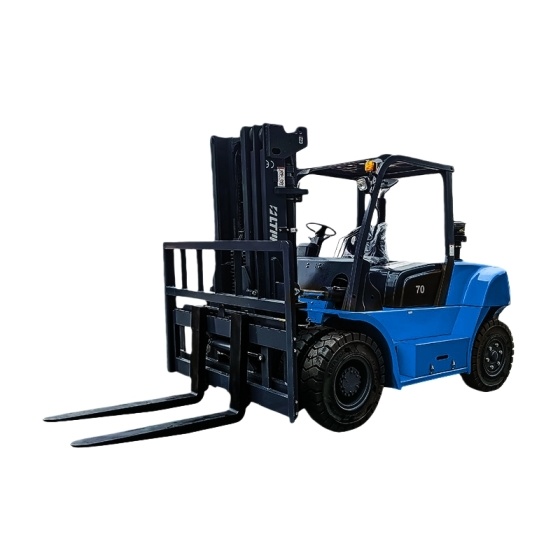

LTMG - FORKLIFT 7 TONS

Model : FD70
Power Type : Diesel
Rated Capacity : kg 7000
Load Centre : mm 600
Lift Height : mm 3000
Fork Size(L×W×T) : mm 1220×150×70
Mast Tilt Angle(F/R) : Deg 6°/12°
Front Overhang (Wheel center to fork face) : mm 595
Ground Clearance（Bottom of mast）: mm 200
Turning Radius (outside) : mm 3350
Max.Gradeability (No load/Full load) : %20
Wheelbase : mm 2250
Service weight : kg 9750
Overall Dimension
Length to face of fork(Without fork) : mm 3565
Overall Width : mm 2010
Mast Lowered Height : mm 2500
Mast Extended Height(With backrest) : mm 4415
Overhead Guard Height : mm 2430
Speed Travel (Full load) : km/h : 30
Lifting (Full load) : mm/s 460
Tire :-
Front : mm 8.25-15-14PR
Rear : mm 8.25-15-14PR
Battery :-
Voltage/Capacity
V/Ah : (12/80) x 2
Engine Model : 6BG1-02 \ 6110
Manufacture : ISUZU \ XICHAI
Rated output/r.p.m. : Kw 82.4/2000 \ 83/2000
Rated torque/r.p.m. : N·m 416/1600 \ 450/1400-1500
No.of Cylinder : 6 \ 6
Bore×Stroke : mm 105×125 \ 110x125
Displacement : cc 6494 \ 7120
Fuel Tank Capacity : L 125 \ 125
Transmission Type: Hydraulic \ Hydraulic
Stage(FWD/RVS) : 2/2 \ 2/2
