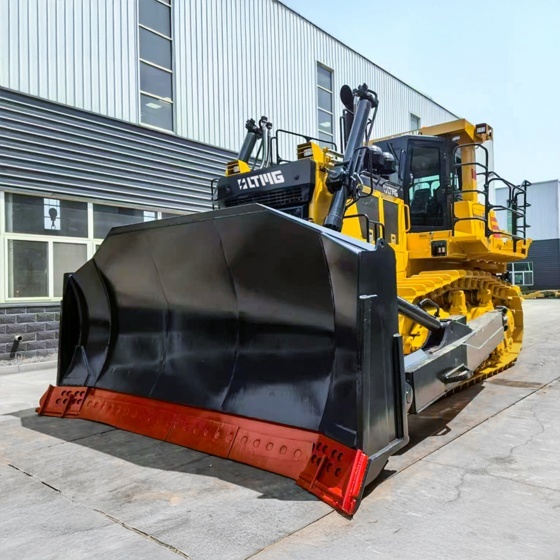

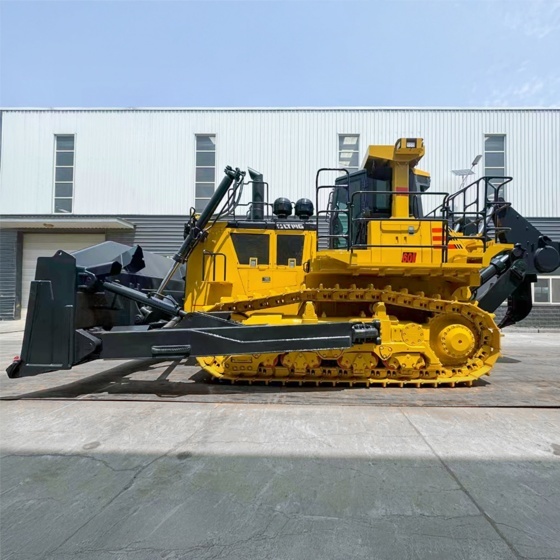

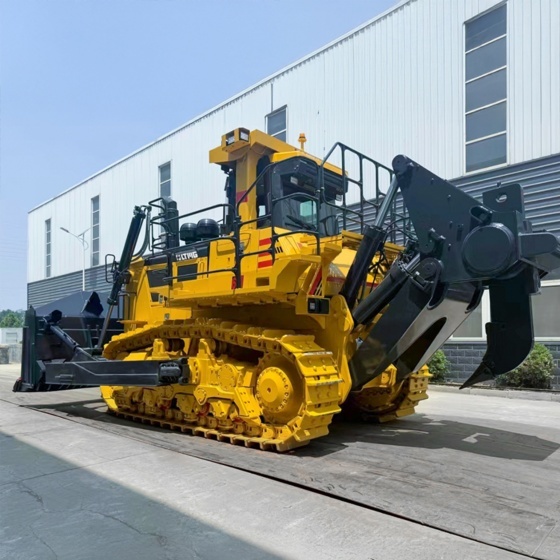

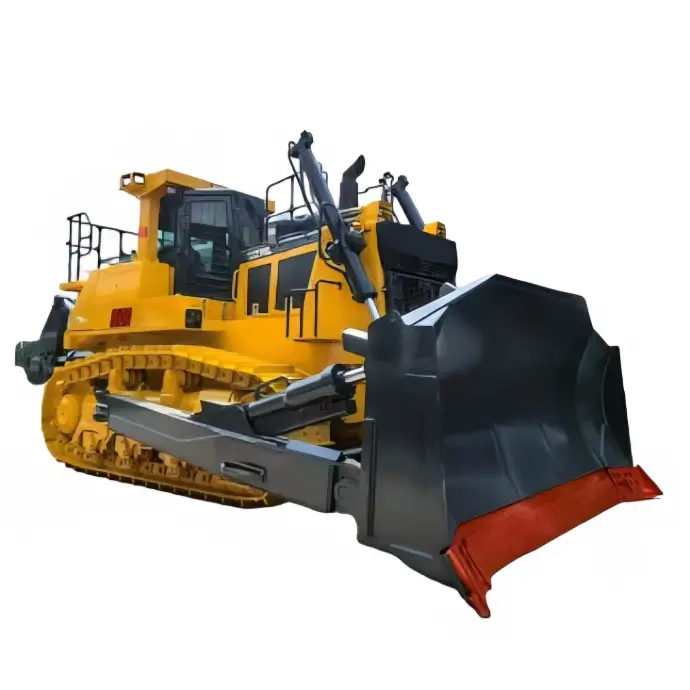

LTMG - Bulldozer 600Hp

Model : T600
Dimension (mm) (without ripper) : 7640*4690*4530
Dimension (mm) (with ripper) : 10390*4690*4530
Weight (T) (with single ripper) : 70.63
Weight (T) (without ripper) : 66.7
Transport weight (excluding work unit, ripper cylinder, shovel tilt cylinder, anti-roll bar, cab, driver, 20% fuel) : 52.1
Engine model : QSK19-C604
Power (kw/r/min) : 450/1800
Engine displacement (L) : 19
Maximum torque (N.m/rpm) : 3019/1300
Minimum turning radius (m) : 6.786
Grounding length (mm) : 3840
Ground specific pressure (MPa) : 0.1469
Minimum ground clearance (mm) : 610
Gradeability (°) : 30
Track type : Main single-tooth crawler board
No. of track shoes (each side) : 40
Width of Track shoe (mm) : 610
Track Gauge (mm) : 2500
Pitch (mm) : 280
No of carrier rollers (each side) : 2
No. of Track roller (each side) : 7
Working Pressure (MPa) : 21
Blade type : Semi-U Blade
Blade length x height (mm) : 4690*2250
Blade Capacity( m³) : 18.5
Blade lift height(mm) : 1660
Blade depth (mm) : 715
Maximum inclination of blade (mm) : 730
Ripper type : single ripper
Ripper weight(T) : 3.59
Maximum loosening depth (mm) : 1435
Ripper lifting height (mm) : 1105
